Dana60 Rear Diff Kit fits Toyota Landcruiser 70 Series - Including Tailshaft
Dana60 Rear Diff Kit fits Toyota Landcruiser 70 Series - Including Tailshaft
SKU:10034330D-DAN
We are offering this in four ways.
Outright Buy:
We supply the kit to you and you have it fitted elsewhere
Exchange Buy:
We supply the kit to you and you have it fitted elsewhere. You return your old diff and tail shaft to us. There will be a core exchange applied that will refunded when you return your old parts
Supply and Fit - Outright:
We supply and fit the kit in our workshop here in Bayswater Vic. You keep your old diff and tail shaft
Supply and Fit - Exchange:
We supply and fit the kit in our workshop here in Bayswater Vic. We keep your old diff and tail shaft.

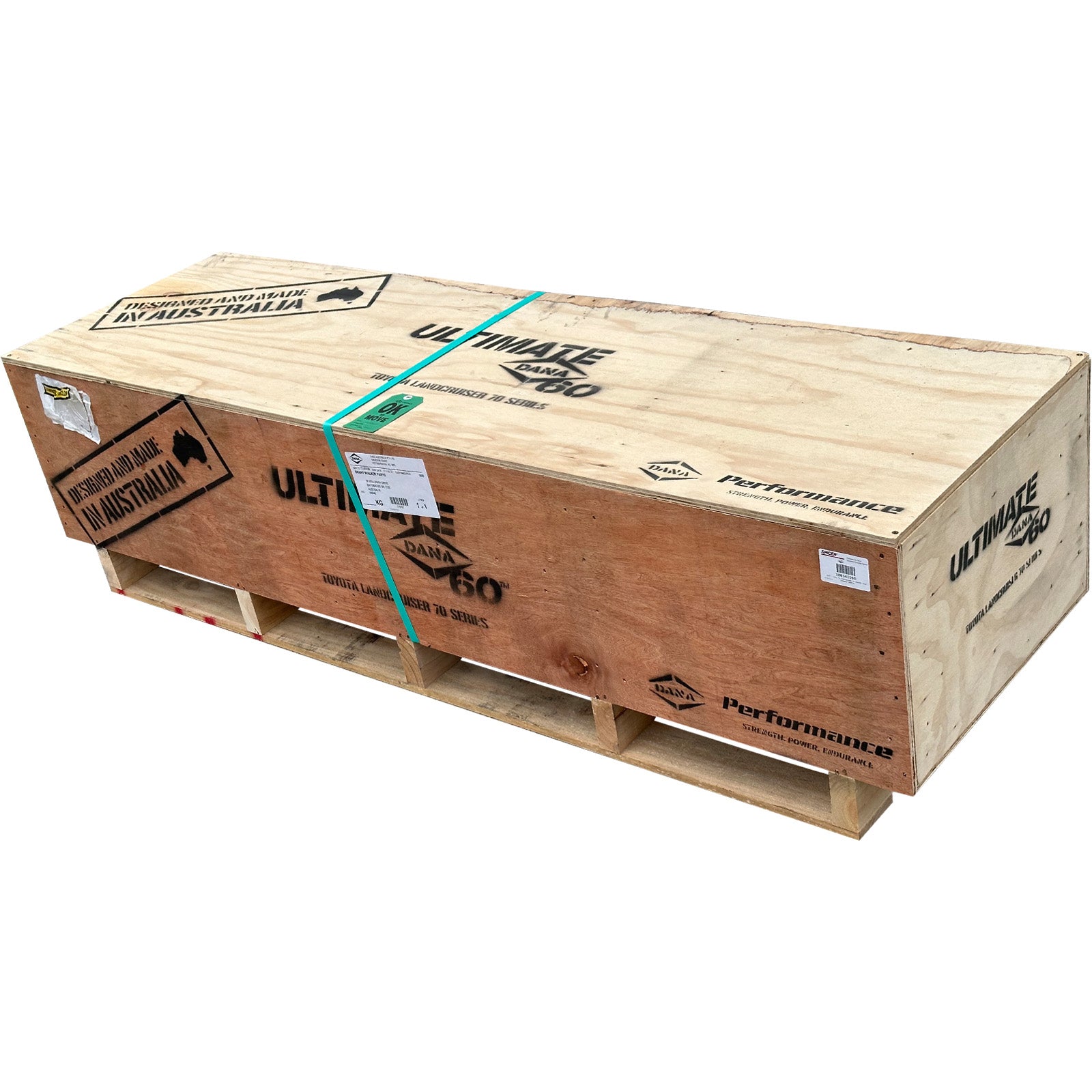

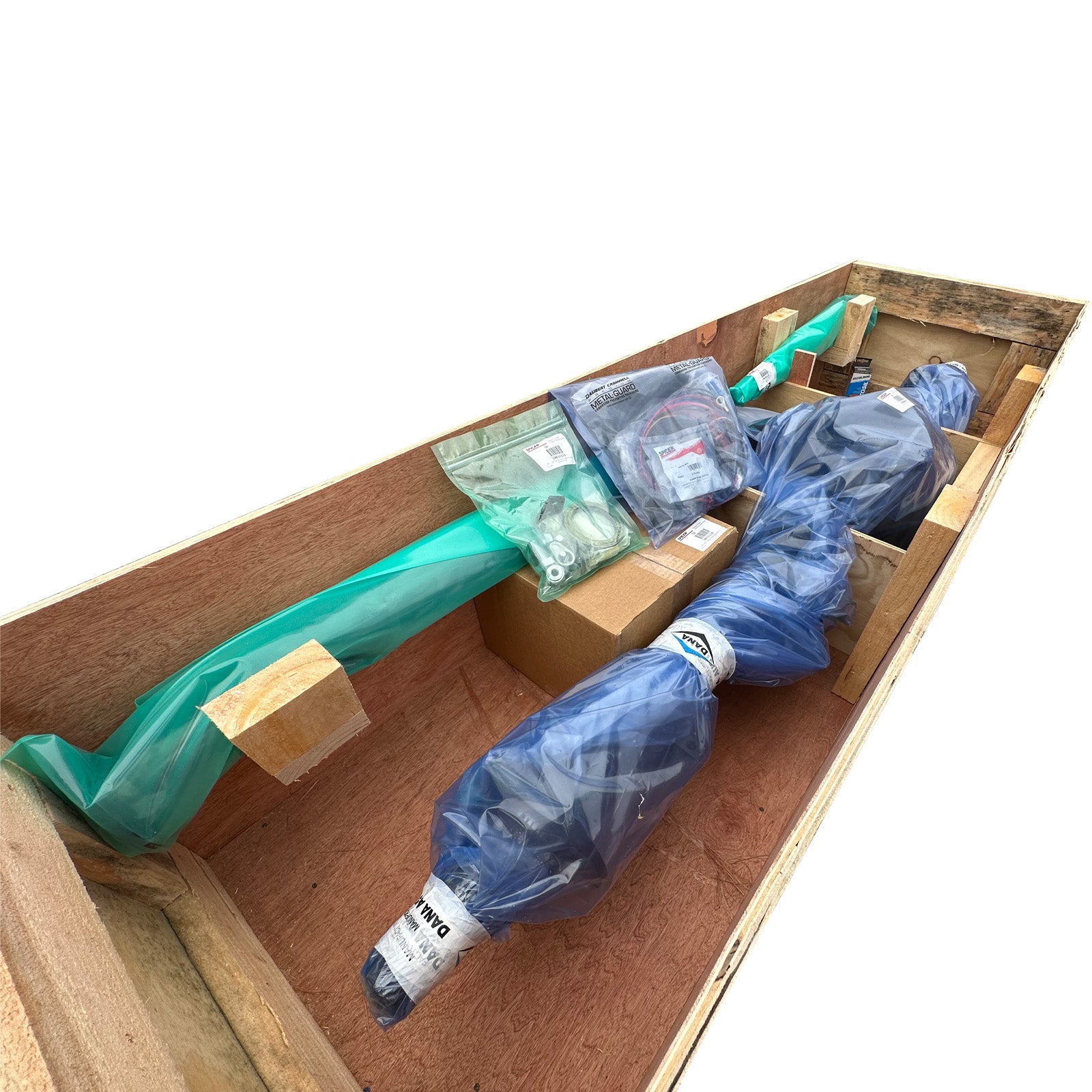

This is a complete kit including the tailshaft.

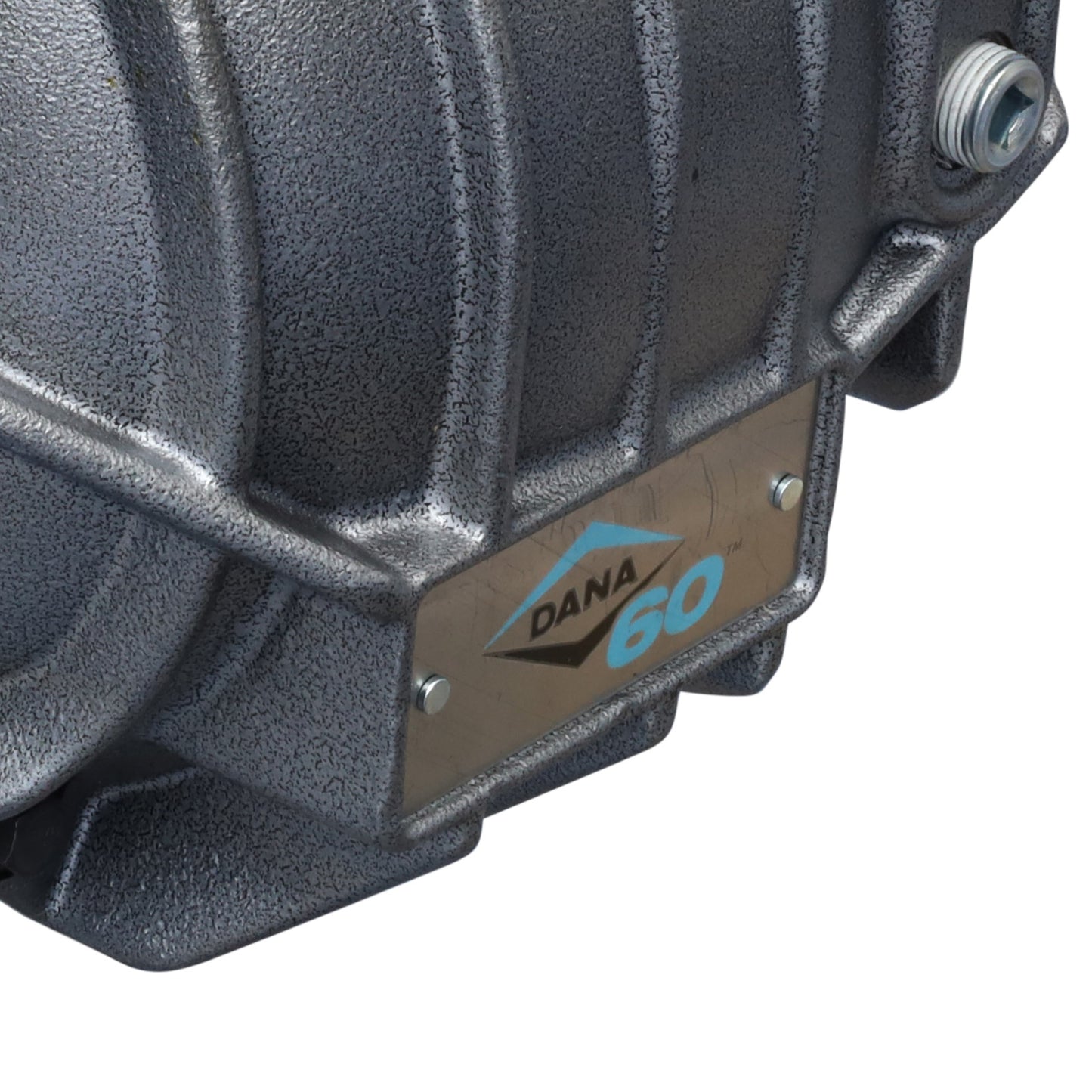

Upgrade your vehicle’s drivetrain with the Dana 60 Landcruiser 70 Series Rear Axle. Dana Spicer manufactures this in Australia and offers superior strength, durability, and performance. The Track has been increased to 1555mm and now it matches the front axle, improving stability and handling on the road. Its higher axle load capacity and GVM make it perfect for heavy-duty applications, especially in the mining industry. The Eaton E-Locker is included as standard, providing ultimate traction on tough terrains. Whether you’re an off-road adventurer or a highway cruiser, the Dana 60 Landcruiser 70 Series Rear Axle is a reliable choice for unbeatable performance and long-lasting durability. We at Smart Replacement Parts are proud to offer this outstanding product and provide expert advice and support
Serious Off-Road Performance.
- Australian Designed; Australian Made
- Increased Oil Capacity For Longer Duty Cycle
- Increased Axle Load Capacity and GVM

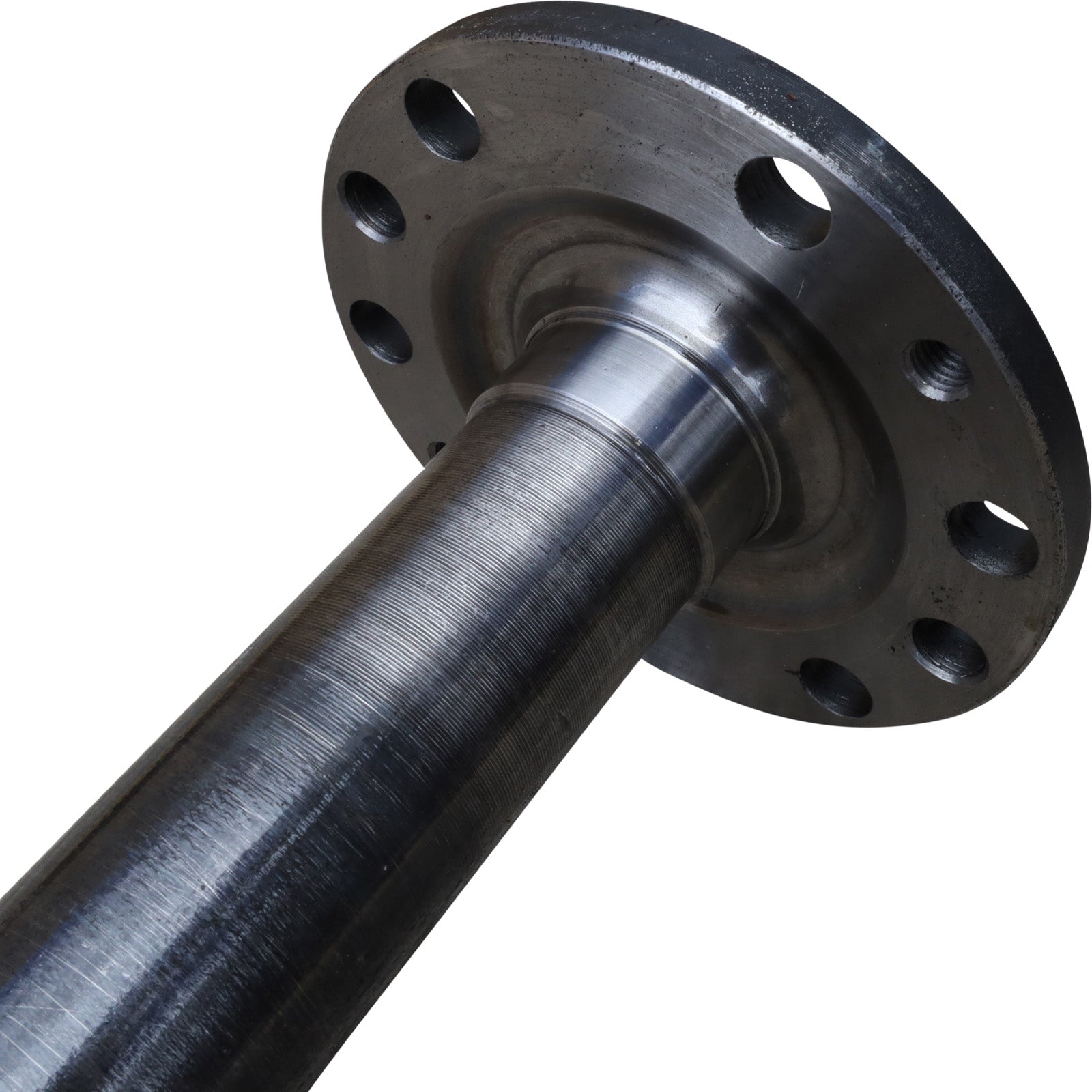

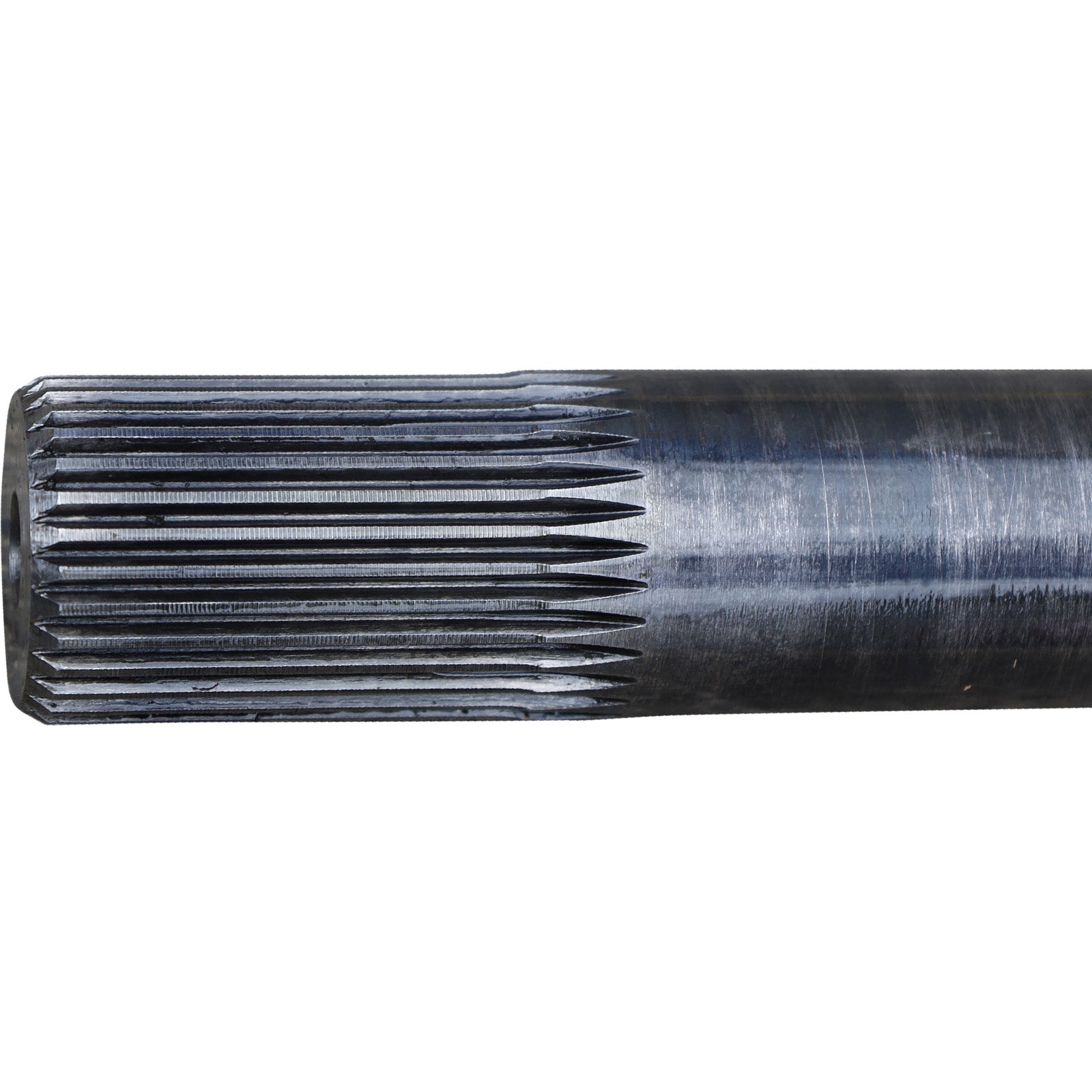

- 30 Spline Forged 4340 Chromoly Axles and Spindles

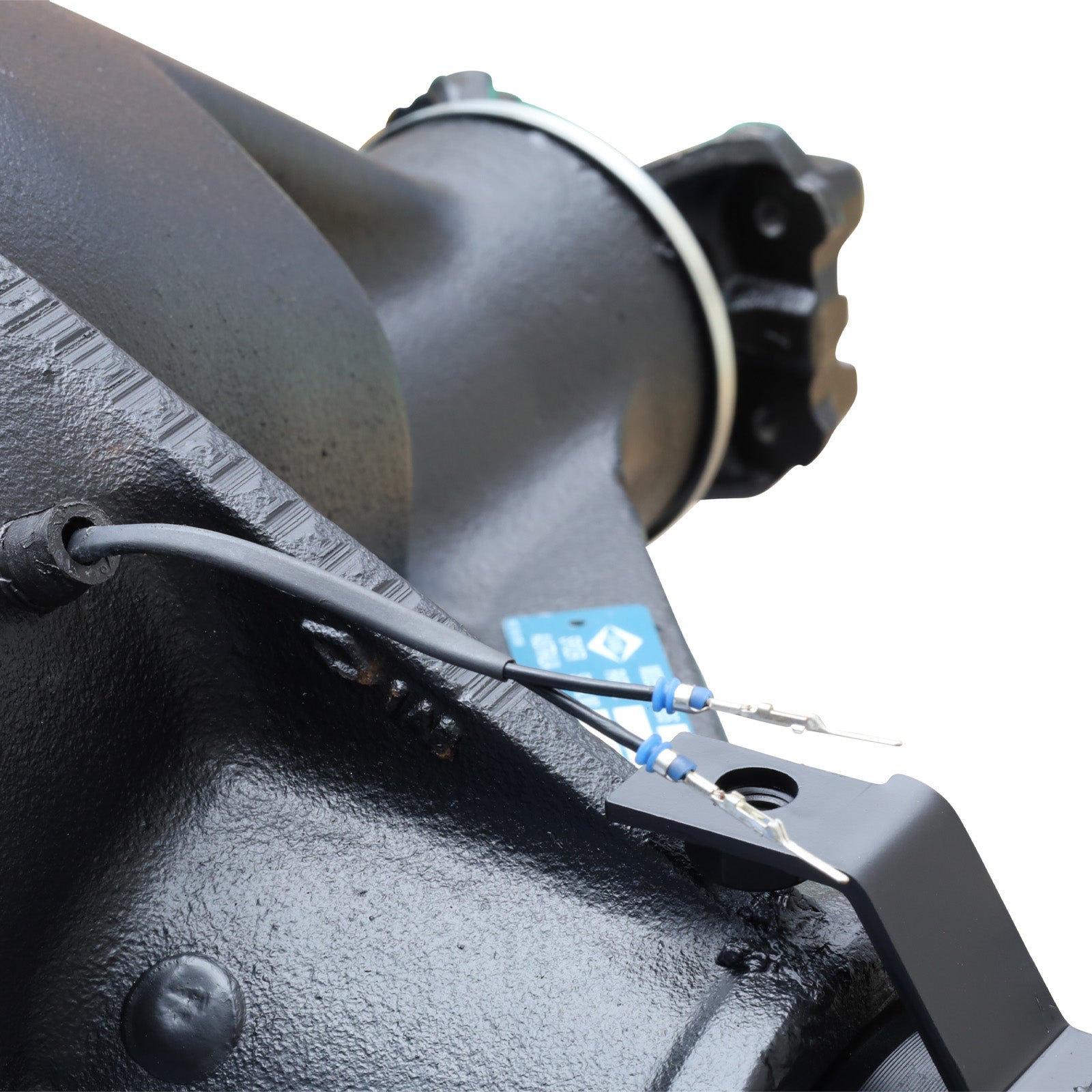

- Eaton E Locker Fitted
Rear Track Correction
- Rear Track Increased by 95mm to Match the Front Axle

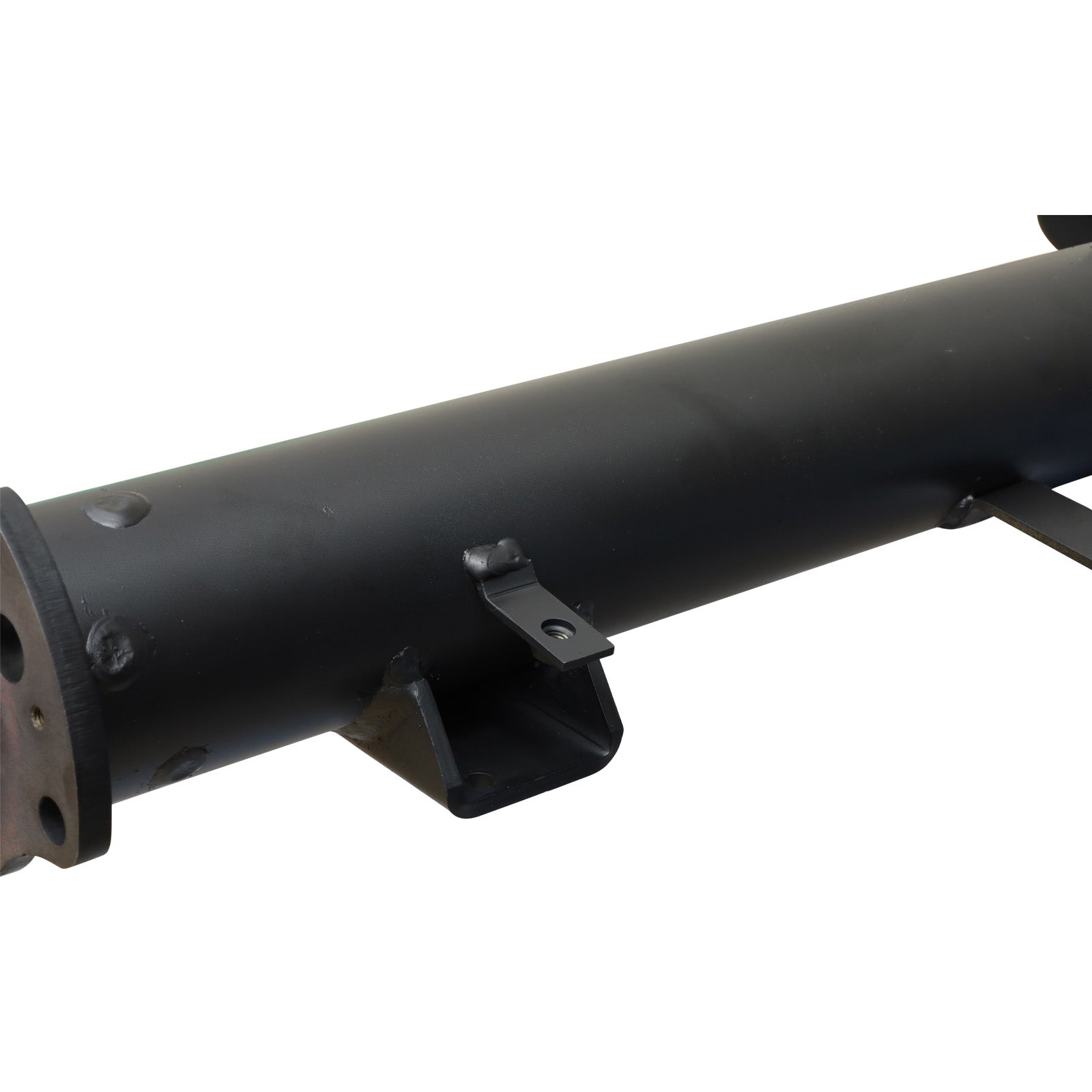

- Tube thickness increased by 3.7mm to 10mm
- Increased strength and durability
OE Toyota | Dana 60 | Difference | |
Axle Width | 1460mm | 1555mm | +95mm |
Tube Diameter | Welded 80mm | DOM 88.9mm | +8.9mm |
Tube Thickness | 6.3mm | 10.0mm | +3.7mm |
Spindle | OE | Forged 4340 Chromoly | Stronger |

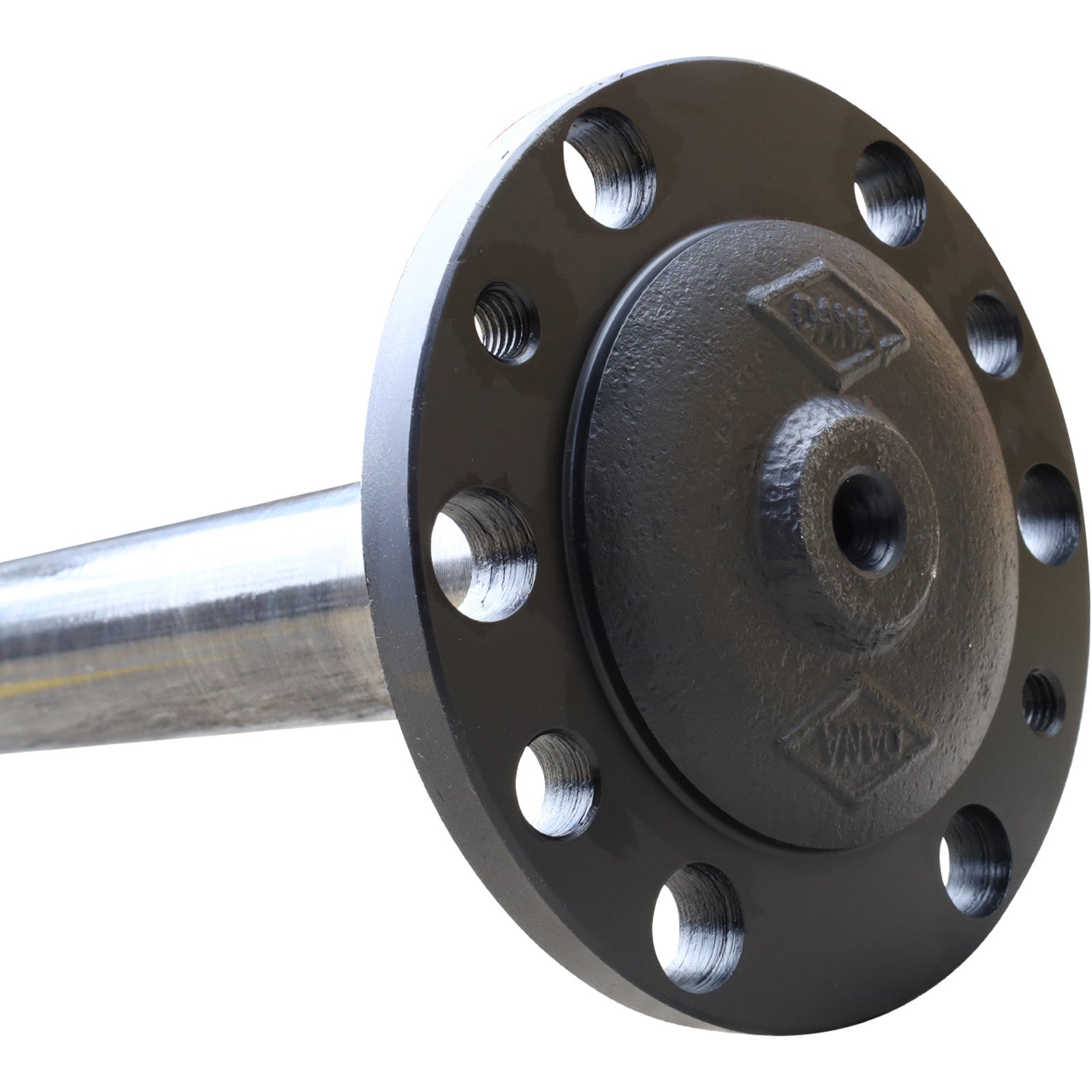

Axle Shaft | OE | Forged 4340 Chromoly | Stronger |
Crown Wheel | OD 241mm | OD 248mm | +7mm |
Oil Capacity | 2.4L | 3.25L | +0.85L |
Rear Gross Axle Weight Rating | 2350kg | 2700kg | +350kg |
Axle Weight | 86kg | 105kg | +19kg |
Diff Lock | Factory Option | Eaton E Locker Standard | More Traction |

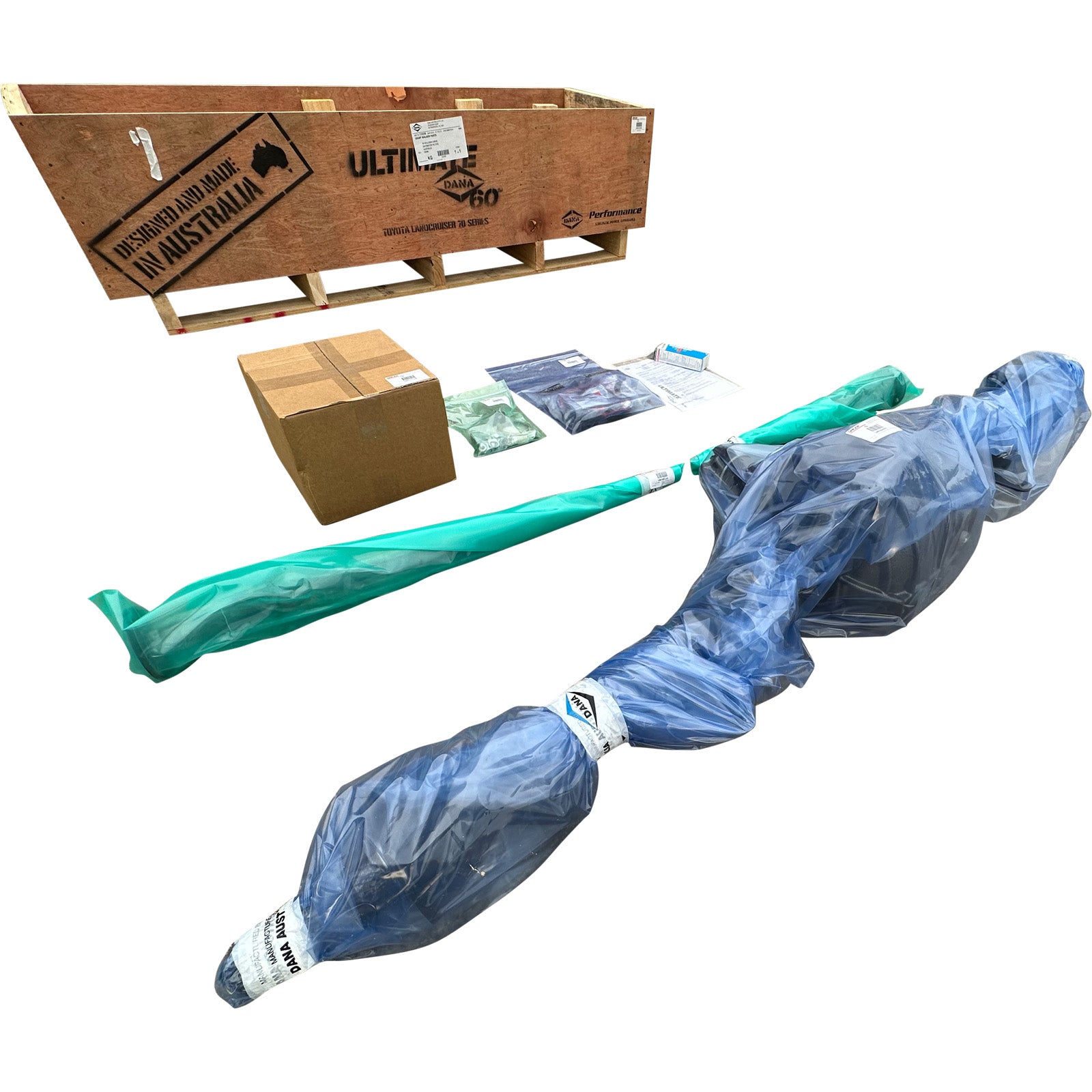

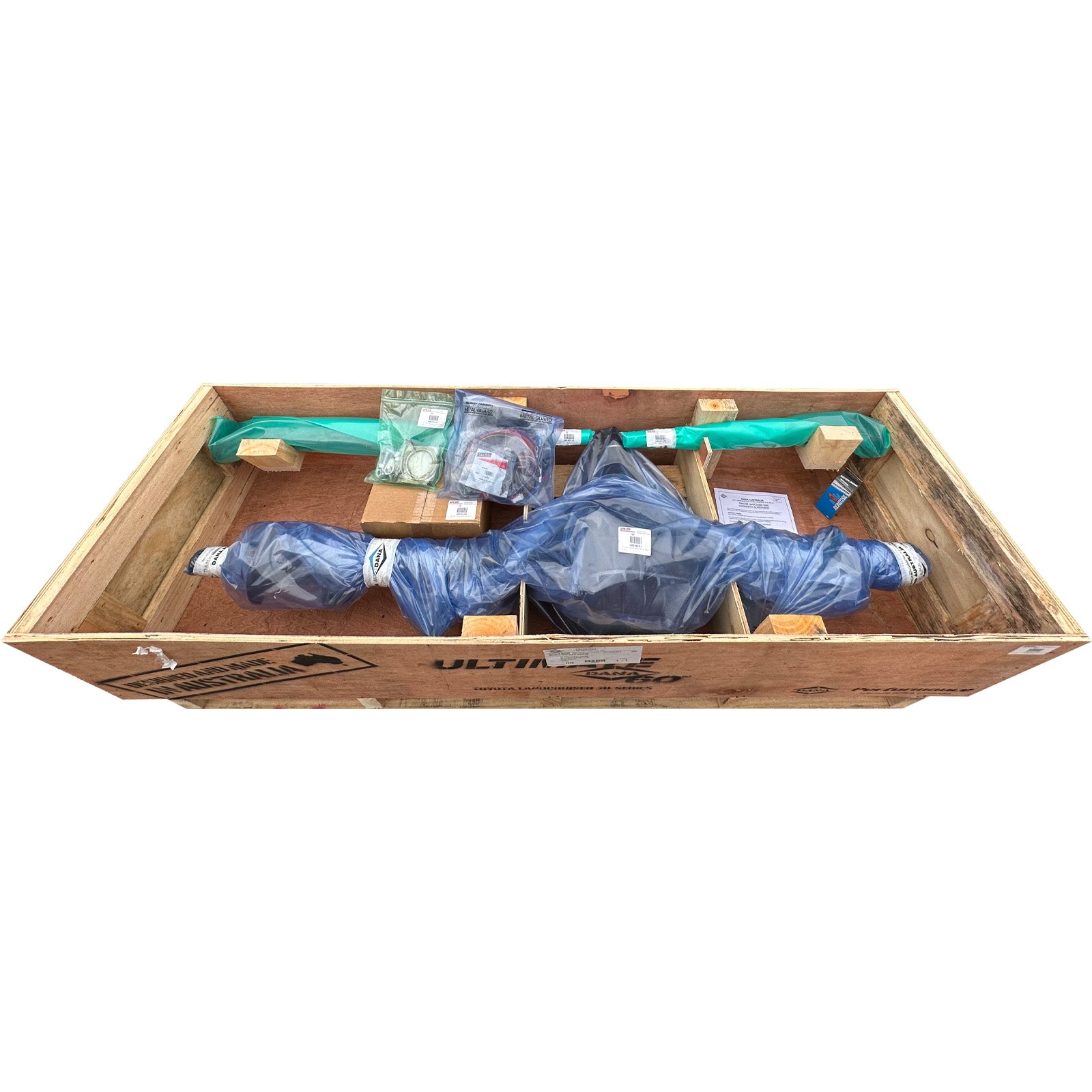

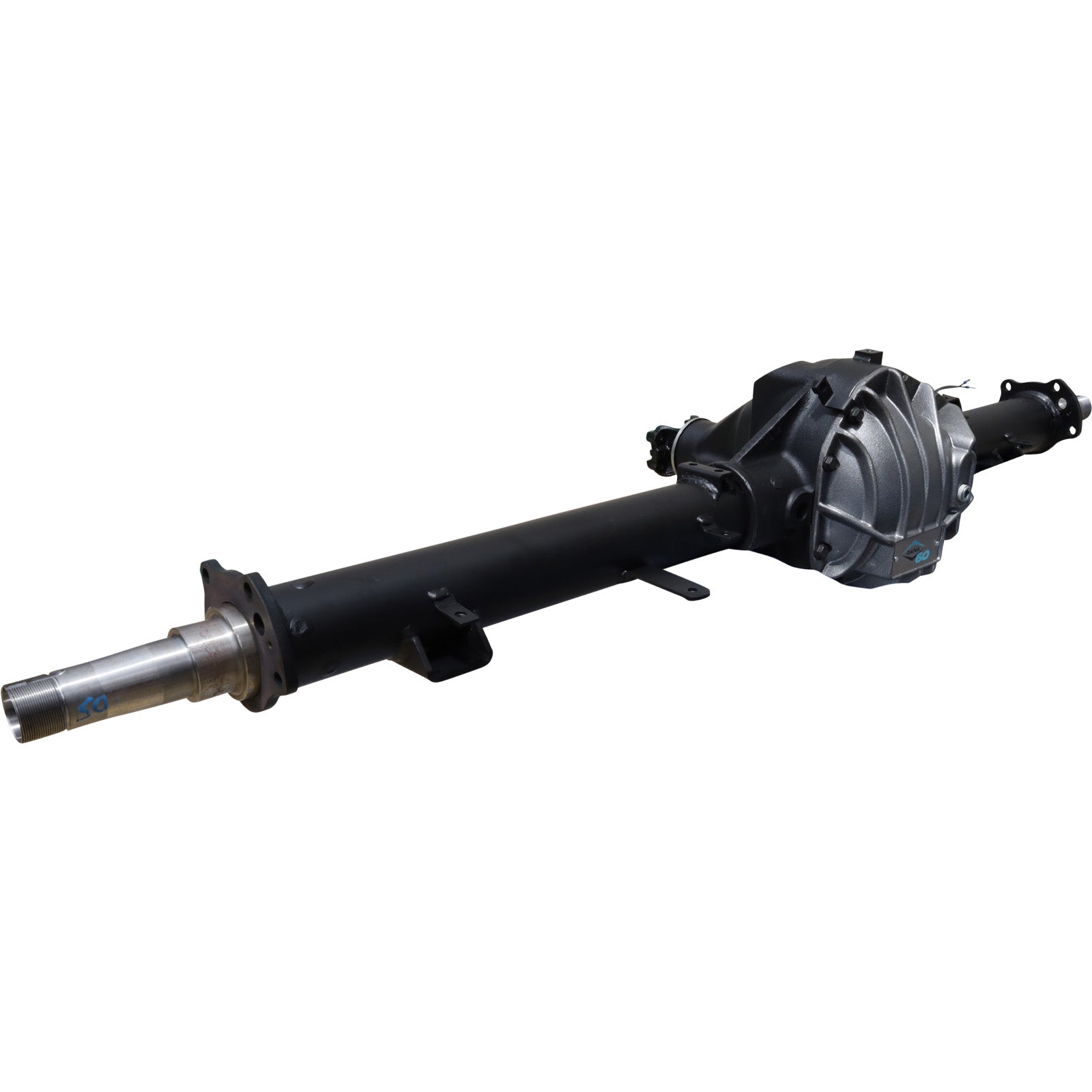

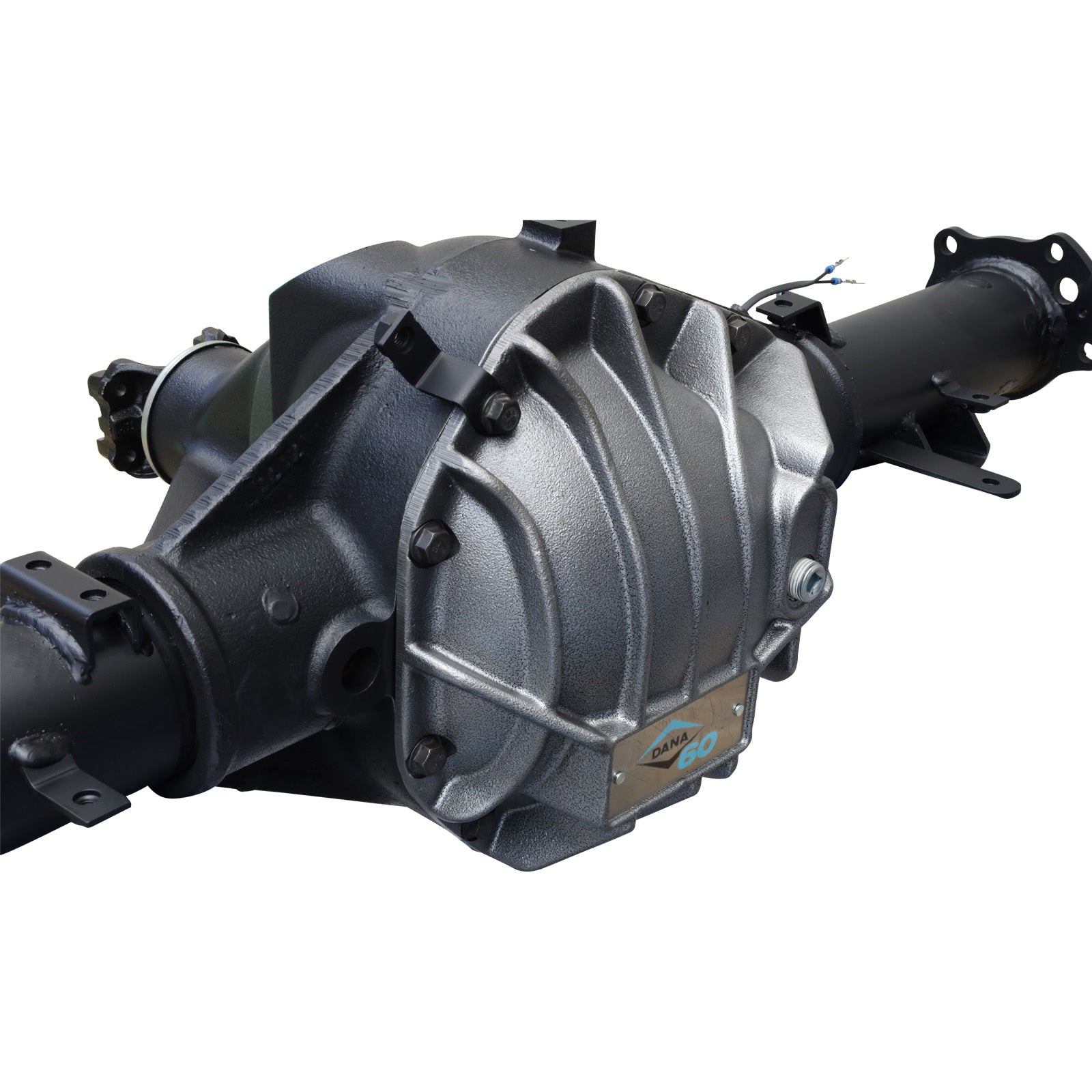

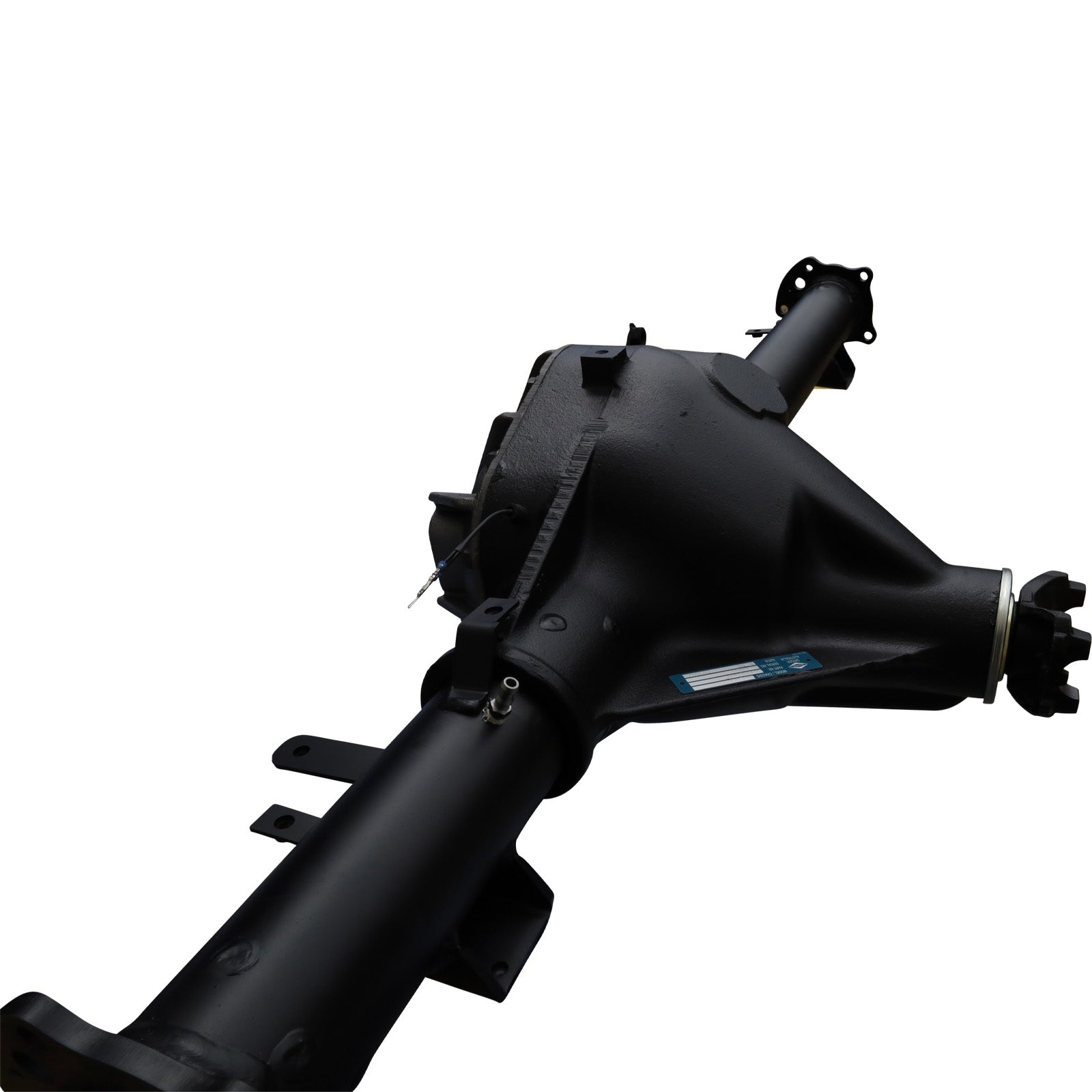

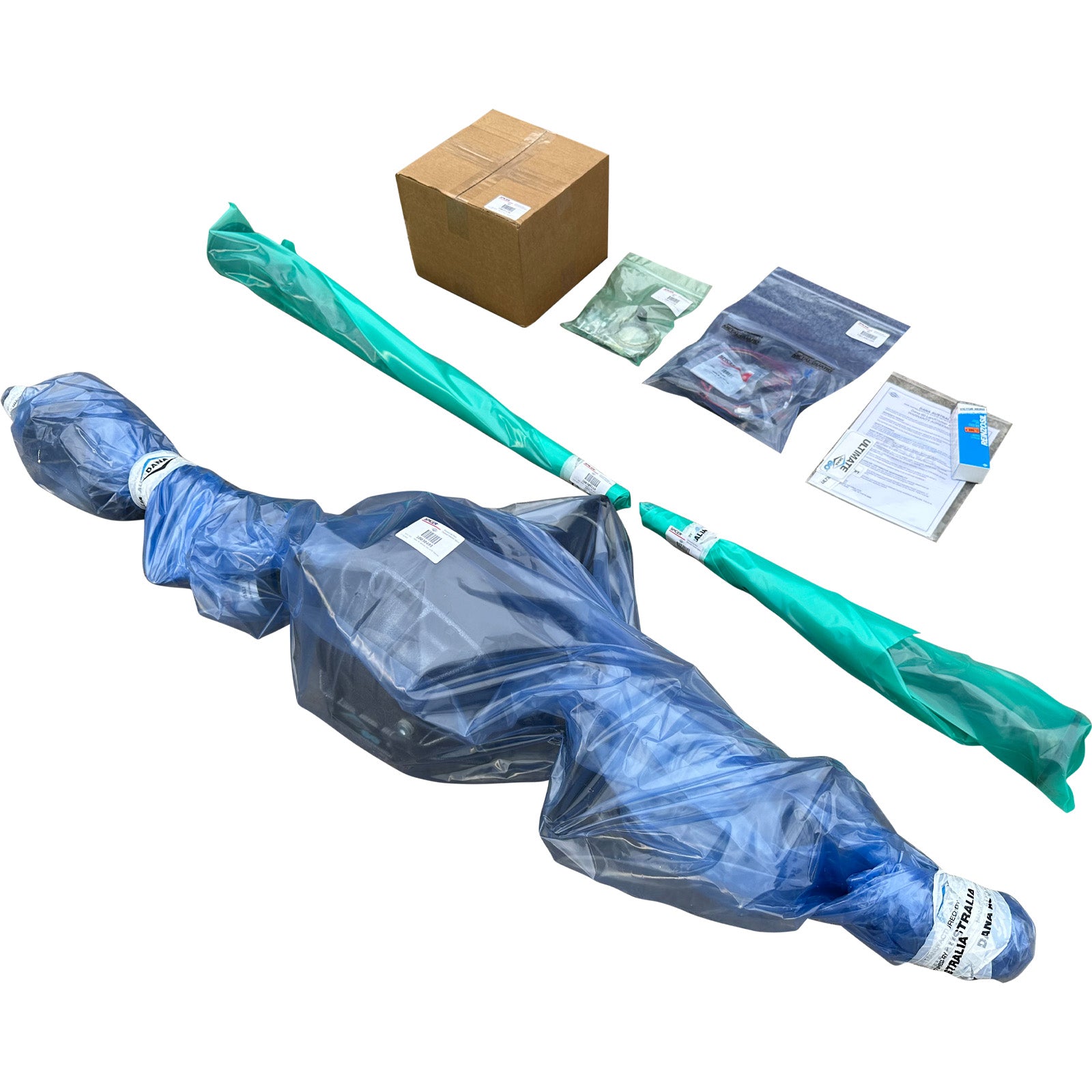

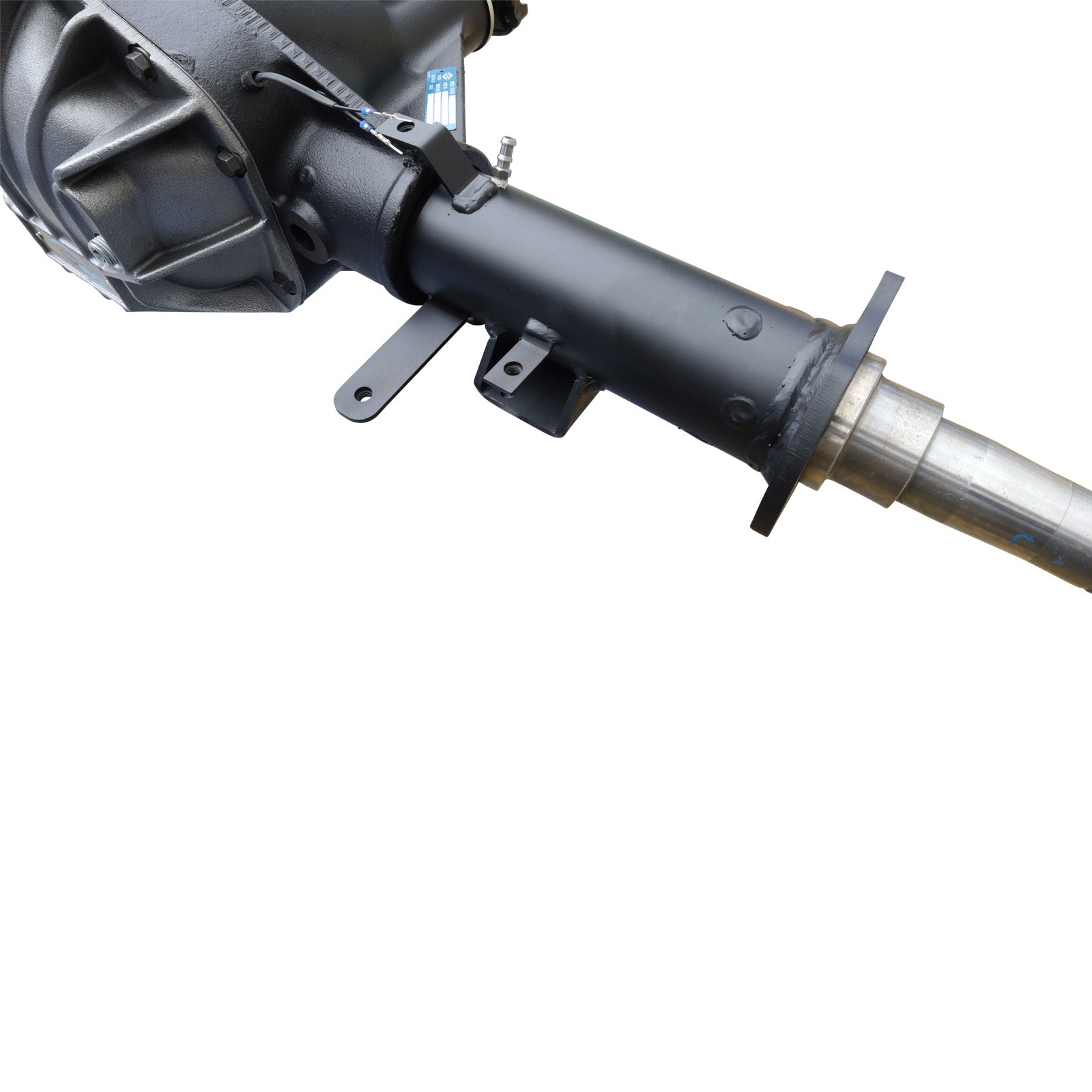

- Axle Assembly

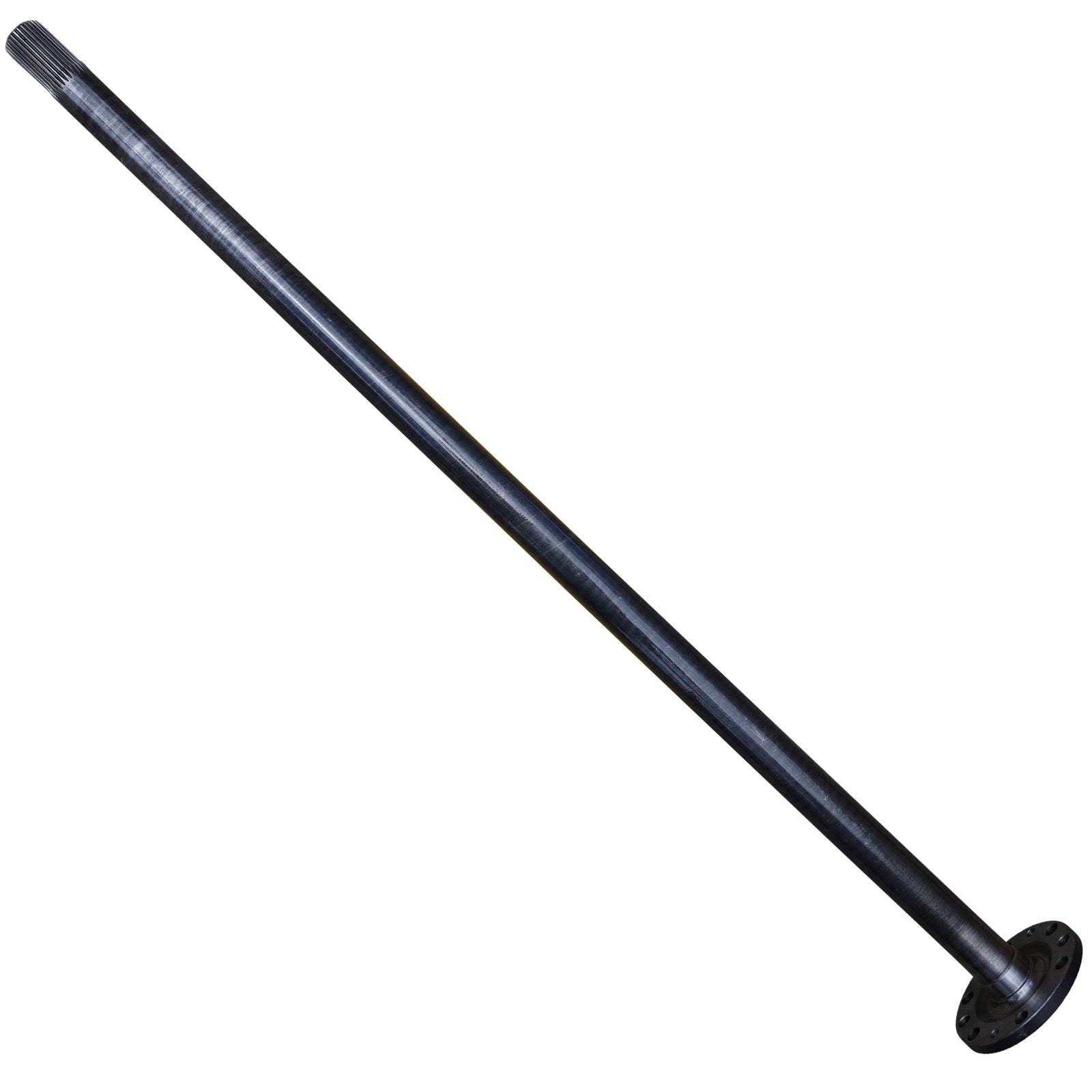

- LH Axle Shaft
- RH Axle Shaft

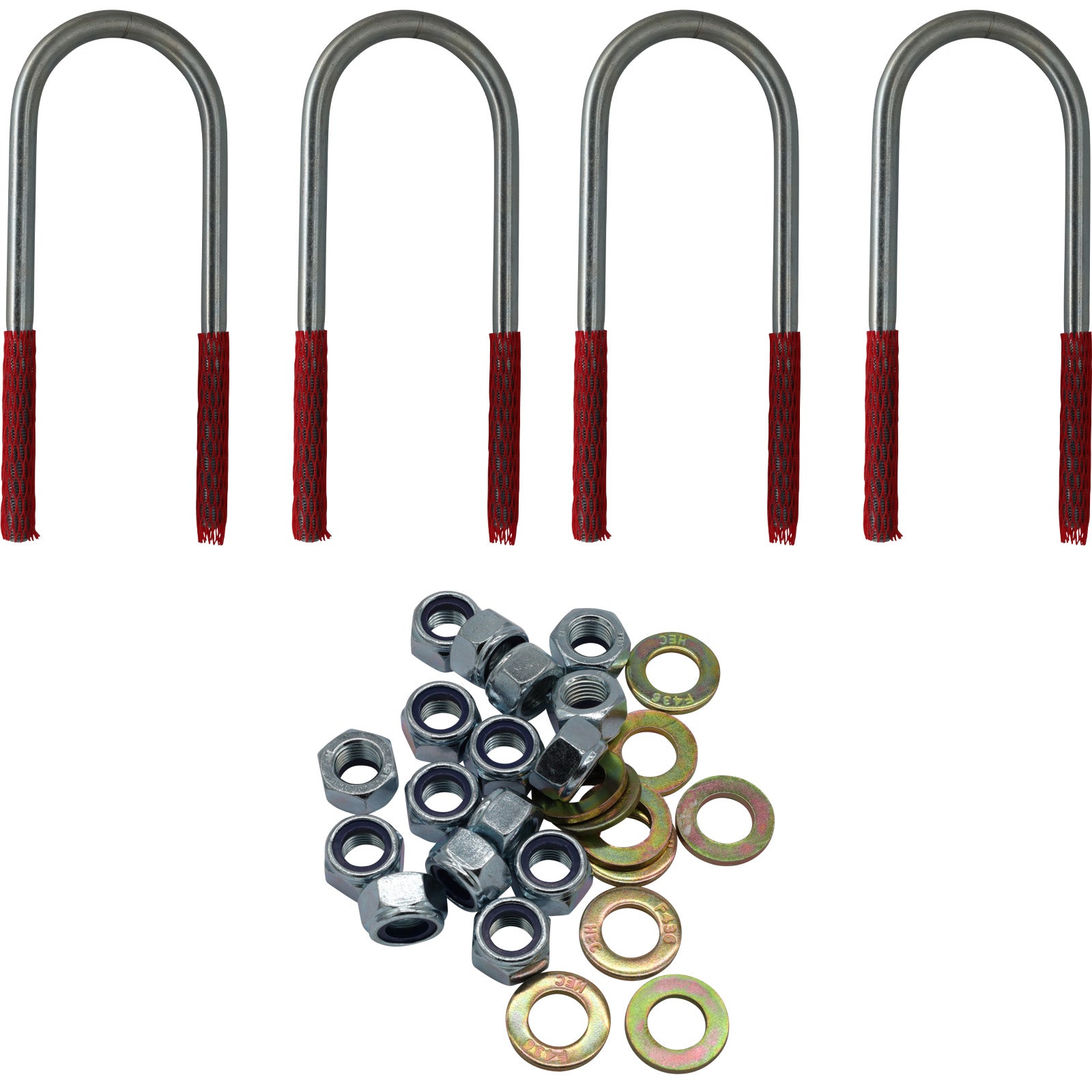

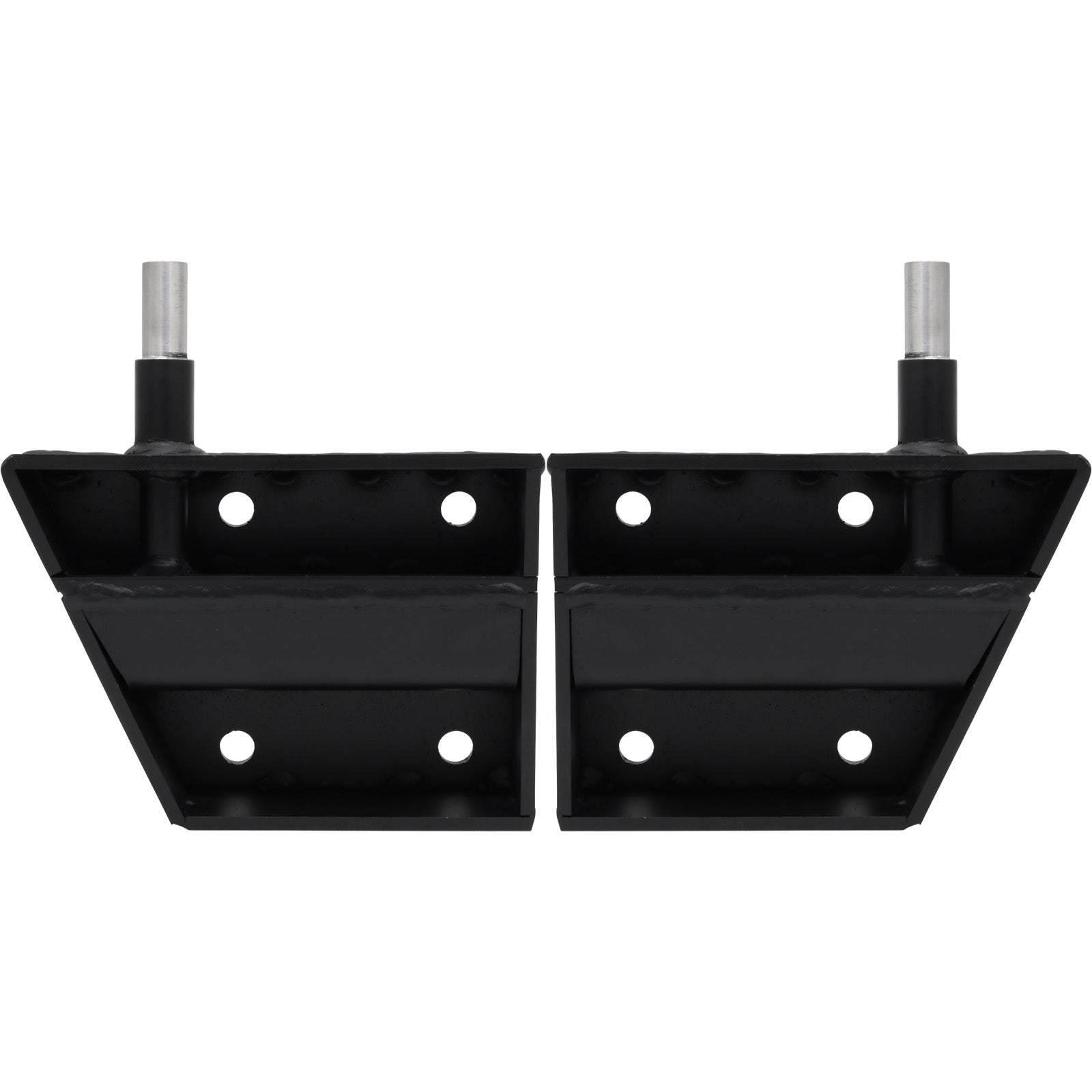

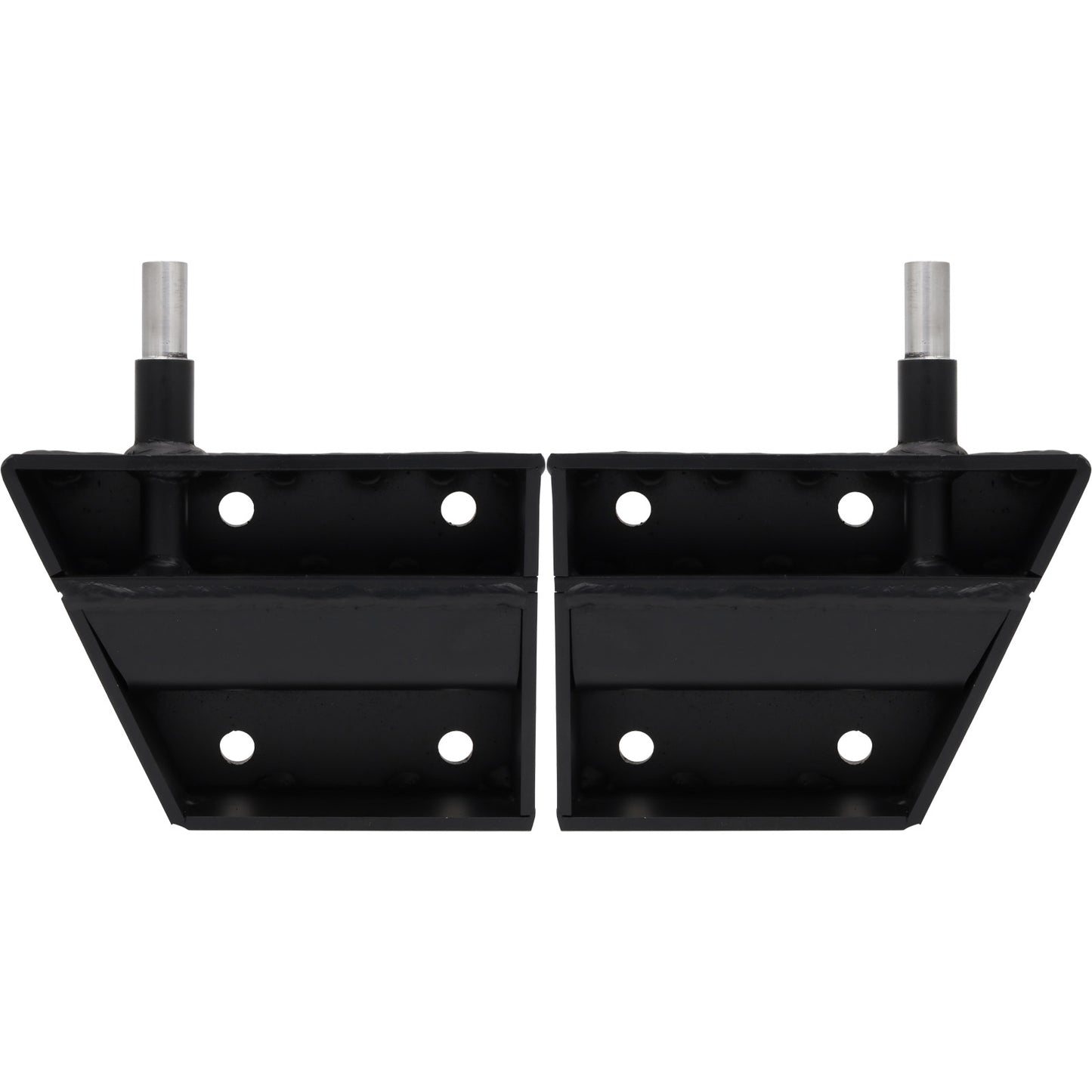

- Spring Shock Mounting Kit
- Brake Pipe Connection Mount Extension
- Sealant
- Upgraded Tail Shaft with 1350 Uni Joint
- All Genuine Toyota Seals and Gaskets
More diff info here
